Specification
Normal Voltage 標準電壓 | 12V | |
Rated Capacity(20 hours rate) 額定容量（20小時率） | 100AH | |
Dimension 尺寸 | Total Height (with terminals) 含端子總高 | 240mm |
Length 長 | 407 mm | |
Width 寬 | 173mm | |
Height 高 | 207mm | |
Weight (Approx) 重量 (約) | 38kg | |
Feature
| 20 hours rate 20小時率 | 100Ah | |
10 hours rate 10小時率 | 90Ah | ||
3 hours rate 3小時率 | 75Ah | ||
1 hours rate 1小時率 | 50Ah | ||
Internal Resistance 內 阻 | Full sharged Battery 25℃ 25℃完全充電 | ≤12mΩ | |
Capacity affected By Temperature 不同溫度下的放電容量 | 40℃ | 106% | |
25℃ | 102% | ||
0℃ | 80% | ||
-20℃ | 60% | ||
Auto-Discharge 自放電后剩余容量
(25℃) | Capacity after 3 months storage 3個月后 | 91% | |
Capacity after 6 months storage 6個月后 | 82% | ||
Capacity after 12 months storage 12個月后 | 64% | ||
Charge(constant Voltage) 充電方法 （恒壓） |
Cycle 循環 | Initial Votage 14.4-14.8V/12 (25℃) Charging current less than 20A 電壓在14.4-14.8V /12V (25℃) 最大電流為20A | |
Float 浮充 |
Voltage 13.5-13.7V /12V (25℃) 電壓在13.5-13.7V /12V (25℃) | ||
Materials
Composition | Positive plate | Negative plate | Shell | Cover | Separator | Safety Valve | Terminal | Electrolyte |
Materials | Pbo2 | pb | ABS | ABS | AGM | Rubber | Copper | Colloid |

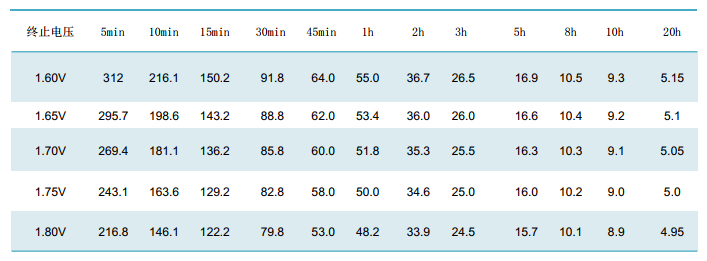

Constant Current Discharge Parameters - Ampere Value: Ampere (25℃)

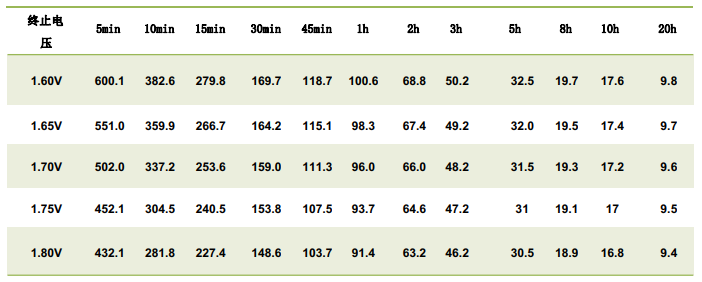

Constant power discharge parameters - watts per cell: watts/cell (25°C)
The rated operating temperature range of the battery is -20℃--55℃. All technical data are measured at a rated temperature of 25°C. The ideal operating temperature range of the battery is 20℃±5℃. Too high temperatures will shorten battery life, and too low temperatures will reduce usable capacity. The absolute upper limit of temperature is 55°C.

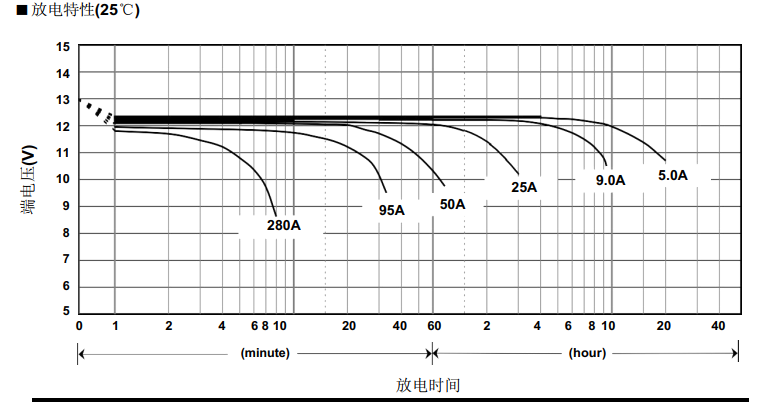

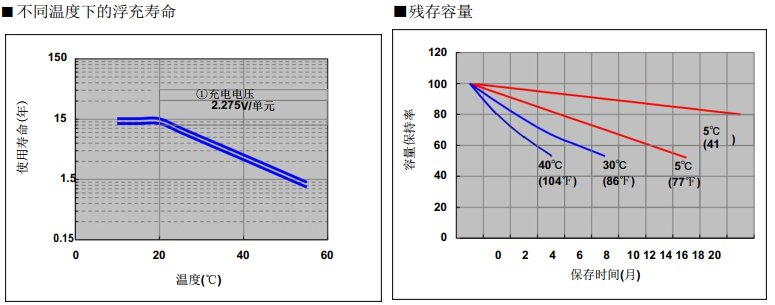

Product characteristic curve
xternal Dimensions (mm)
Features
●The design life of floating charge is 10-12 years (25℃);
●Maintenance-free, no need to add water and rehydration;
●Unique sealing technology ensures extremely low probability of acid climbing;
●Adopt flame retardant ABS shell;
●Extremely low grid corrosion rate and water loss rate, making the working life longer;
●Colloidal electrolyte, good deep discharge cycle performance and wide operating temperature range;
●Please control the temperature between -15℃~50℃ when charging and discharging.
